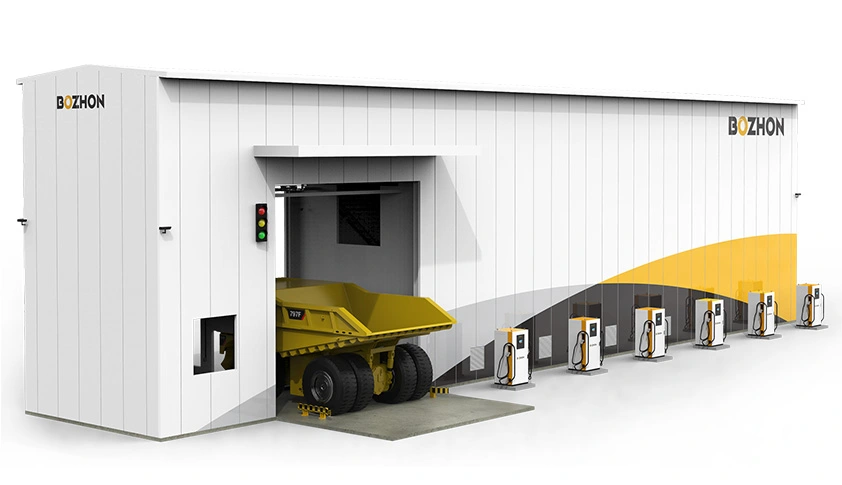

Mining truck top-lifting charging and swapping station The battery box position is recognized by cameras. The battery swapping machine intelligently adjusts the battery box position with the coordination of XYZR four-axis, achieving flexible battery swaps, reducing parking difficulties for drivers, and increasing the success rate of battery swaps.
Equipment footprint | L32m * W8m * H8m |
Occupied area | 256m² |
Battery swapping method | Top-lifting |
Charging slots | 12 stations |
Battery swapping time | ≤6min (overall equipment cycle time) |
Success rate of battery swapping | ≥99.9% |
Service capacity | 150~200 times/day |
Equipment functional modules | battery swap, charging, fire protection, station control, etc. |
Working environment | -35℃~55℃ |
Altitude | ≤3000 m |
Equipment power | AC380V |
Noise level | ≤ 75 dB (measured outside of the enclosure) |
Charging power | 300KW |
