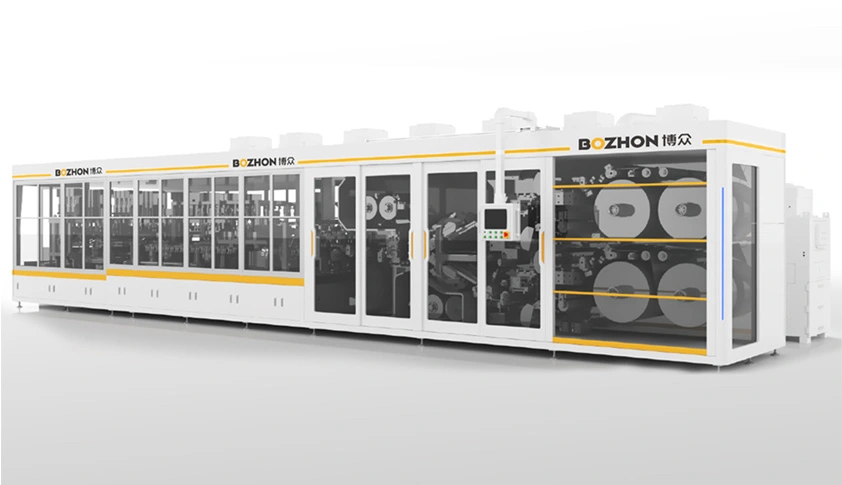

Cutting & Stacking Machine The equipment process is roll material feeding, cathode and anode cutting, lamination, belt conveying, robotic arm grabbing, secondary positioning, stacking, hot pressing, taping, cell unloading.
The equipment integrates automation functions, including tape connection, deviation correction, tensile detection, ultrasonic dust removal, dimension & defect detection, alignment detection, etc.
Equipment size | L18.5m * W5.6m * H3.5m |
Compatible range of pole chips | 330mm-590mm |
Pole slice cutting width | 80mm-230mm |
Overall efficiency | 300-480PPM |
Laminated single chip efficiency | 0.125S-0.15S |
Cell assist interval | 2S/Polar system |
Own failure rate | ≤2% |
Cell yield | ≥99% |
Internal cleanliness of the equipment | 05µm≤5000level |
Efficient and stable：It only takes 0.125s-0.15s to one product. It's eight times faster than Z fold.
The speed and tension of diaphragm are stable.The porosity, the battery pore size, the interface between the pole plate and the diaphragm are uniform, and the interface of the pole core is smooth. The lamination process is high safety.
High integration：the function of Lamination,stacking,hot-press,rubberizing,
Stick QR code,reduce the area occupancy.
Good Quantity and High accuracy：The equipment will inspect the product with CCD，It make the battery pole plate have a high alignment.
